clockchart-construction

This is only for those who want to know how the idea came into being and got implemented. You are NOT required to read it as part of using the package.

This document reveals what’s going on behind the scene–how the charts are constructed–how the idea was conceived and implemented after numerous trial and error. For the details on how to use the package, see clockplot.

⚠ The plots shown here may not produce the expected output due to the behavior of Rmarkdown. To see the actual appearance, run the codes given.

Broadly speaking, the construction of the clockcharts have two steps.

Construction of the 24-hour clock
Plotting event times on the clock

Each steps has two substeps:

The mathematical idea
The programming

The Clock Skeleton

First we need to construct the skeleton, the clock on which event times are plotted. For this, we need a circle, on which we have to mark 24 dots to denote 24 hours, starting from 00:00 (12 AM) to 23:00 (11 PM).

It is enough to draw a unit circle, although a circle of any radius would do. In R, it is easiest to draw a circle using the complex equation. For a unit circle, the equation is \(e^{i\theta}\), where \(e\) is Euler’s number, an irrational constant having the approximate value of 2.71828; \(i\) stands for imaginary unit, equal to \(\sqrt{-1}\); and \(\theta\) refers to the trigonometric angle in radian. To make a complete circle, we need to allow \(\theta\) to take values from 0 to 360 degrees (\(2\pi\) in radian).

Programmatically, we need to create some angles ranging from 0 to \(2\pi\) and then connect them to make a complete circle. Let us create 100 angles and use them in the circle equation (\(e^{i\theta}\)). The trigonometric form of the equation is \(sin^2 \theta + cos^2 \theta = 1\), while the algebraic form is \(x^2+y^2 = 1\). The complex form, however, is more convenient.

k <- 100
timepoint <- exp(1i * 2 * pi * (k:1) / k)
plot(timepoint, pch = 19, type = "b")

The Unit Circle

Here R just takes the complex numbers and plots the values of the real part on the X axis and the corresponding values of the imaginary part on the Y axis.

Now we have to mark the hours on the circle to make it look like a clock. We have to show 24 hours marks as well some marks for minute marks, corresponding to the fraction of the hour. This clock is slightly different from a traditional clock not only in that it has 24 hours instead of 12, but also that it has only one hand, the hour hand, with minute part added to the hour mark as the fraction; the second part, having minor contribution, is ignored.

First, let us see the output with 24 hour marks.

k <- 24
hour <- exp(1i * 2 * pi * (k:1) / k)
plot(hour, pch = 19)

At this time, we move to the R package ggplot2 to produce better graphics. We need to create an R data frame for plotting ggplots. We also mark some points for minutes.

First, let us create the required data frame

k <- 24 # Hours
subk <- 24 * 4 # Fraction of hours
times <- exp(1i * 2 * pi * (k:1) / k)
subtimes <- data.frame(SubT = exp(1i * 2 * pi * (subk:1) / subk))
ampm <- c(rep(" AM", 6), rep(" PM", 12), rep(" AM", 6))
library(tibble)
dfclock <- tibble(
  time = times,
  hour = c(6:12, 1:12, 1:5), # May not be needed
  label = paste0(c(6:12, 1:5), ampm)
)

Explanation

k = 24 indicates there are 24 hours. Then in each hour is divided into 4 parts , corresponding to the elapse of successive 15 minutes. Thus, a small point on @ref(fig:clock24) in the middle of two larger point (hour) means half an hour has elapsed. For instance, the the point in the middle of 7 PM and 8 PM is 7:30 PM.

Now the code exp(1i * 2 * pi * (k:1) / k) gives us all the angles corresponding to 24 hours on the clock. Here, we have to note that the angles in trigonometry starts from \(0^o\) (X-axis) and rotates counter-clockwise, the direction opposite to the rotation of clock hands (the significance of the difference will be seen shortly). But the clock moves clockwise. At 0 degree, we have 3 in a 12-hour clock and 6 in 24-hours clock.

Similarly, the code SubT = exp(1i * 2 * pi * (subk:1) / subk) gives us the angles corresponding to the fraction of an hour. As we have already mentioned, the clock hand rotates clock-wise, starting from the \(0^o\) angle, so we name the labels 6 PM to 11 PM, then we have 12 PM to 11 PM, followed by 12 AM to 5 AM.

The code c(rep(" AM",6), rep(" PM",12), rep(" AM",6)) ensures this sequence.

We then place the data into two data frames subtimes and dfclock, since they are unequal dimensions.

library(ggplot2) # Load the package ggplot2
p1 <- dfclock %>% ggplot() +
  geom_path(data = subtimes, aes(Re(SubT), Im(SubT))) +
  # Connect Last two missing points
  geom_line(data = subtimes %>% dplyr::slice(-c(2:95)), aes(Re(SubT), Im(SubT))) +
  theme(aspect.ratio = 1) +
  geom_text(data = dfclock, aes(Re(time) * 1.1, Im(time) * 1.1, label = label)) +
  geom_point(
    data = subtimes,
    aes(Re(SubT), Im(SubT)), shape = 19, color = "black", size = 0.6
  ) +
  geom_point(aes(Re(time), Im(time)), color = "black", size = 1.8)

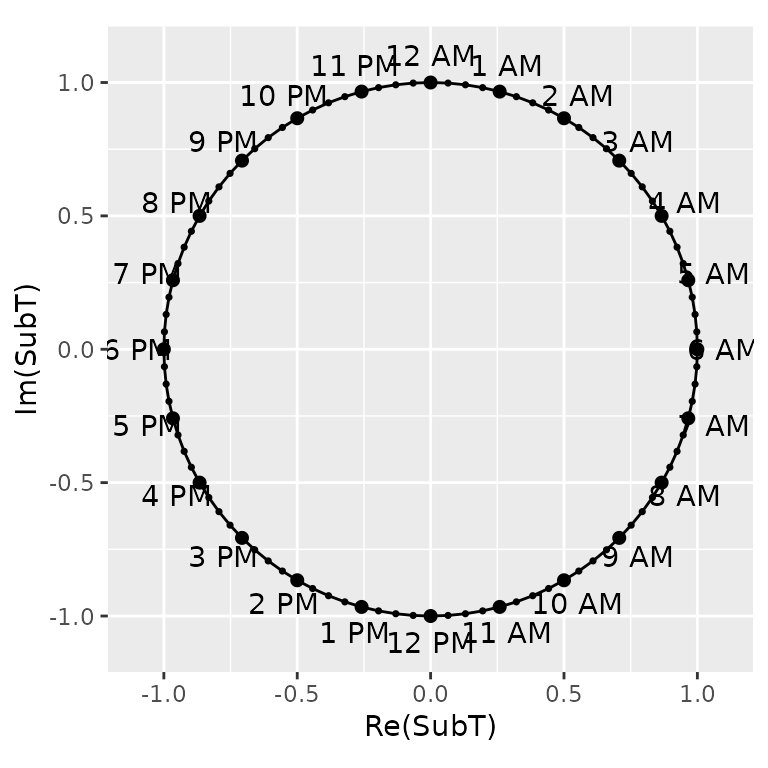

p1

Next, we plot the lines using the ggplot2 package. The functions geom_path() does the job, while geom_line() is used to fill the gap between the first and the last point. aspect.ratio = 1 is set to ensure the chart size do not depend on resizing of Rstudio Viewer size.

The points corresponding to the hours are labelled AM or PM using the geom_text() function. We do not need the axis labels and ticks. Let us remove them:

p1 + theme(
  axis.text.x = element_blank(),
  axis.ticks.x = element_blank(),
  axis.text.y = element_blank(),
  axis.ticks.y = element_blank()
) +
  labs(x = "", y = "")

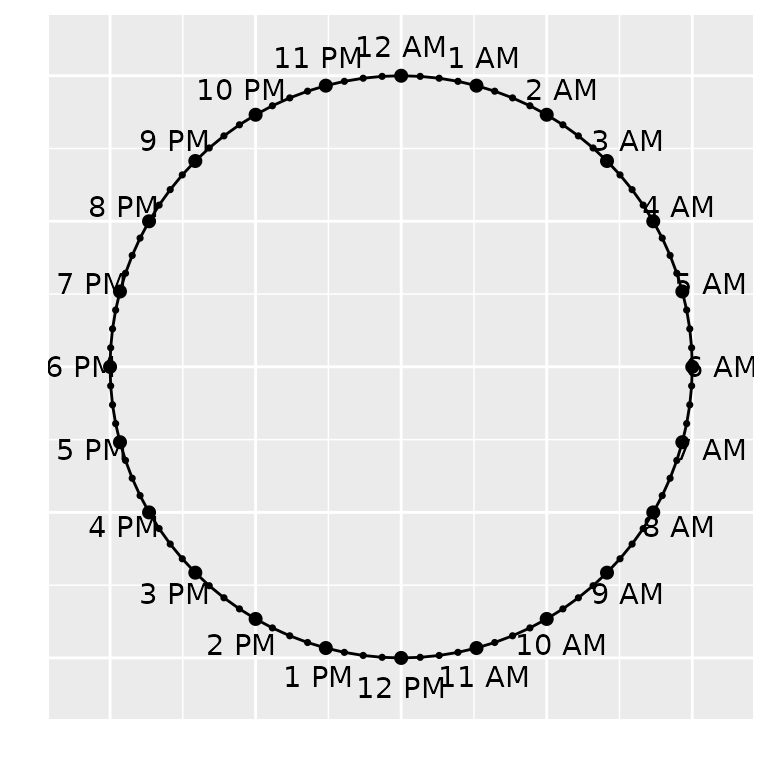

This completes our first part of the plot; we get the skeleton of the clock.

The second and final part of the task involves plotting event times on the appropriate points. Now, this task has several variations. In the simplest form, we just have a chart, so called clock_chart, which plots the event times on the 24-hour clock. An optional argument Col can be used to change the color of the clock hands. The other variations will be discussed later, when we complete the discussion on how the event times are prepared for plotting.

Preparation of Event Times Data

We have data in the format HH:MM:SS. We need to convert this data to (x,y) coordinates. In the unit circle, for example, the 12 AM should be plotted on the Y-axis (x = 0, y = 1) and 6 AM on the X axis (x = 1, y = 0), although, to avoid plotting on the circumference, we decrease the length a little (more on this later).

To convert the HH:MM:SS to coordinates of the unit circle, we first separate the parts of time into HH, MM, and SS. We accomplish that using the dplyr and tidyr package.

# Data to check on
chkdf <- data.frame(
  time = c("06:00:00", "12:00:00", "17:30:00", "00:05:25"),
  value = sample(10, 4)
)
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
chkdf %>% tidyr::separate_wider_delim(
  cols = time,
  names = c("hour", "minute", "second"),
  cols_remove = FALSE,
  delim = ":"
)
#> # A tibble: 4 × 5
#>   hour  minute second time     value
#>   <chr> <chr>  <chr>  <chr>    <int>
#> 1 06    00     00     06:00:00     7
#> 2 12    00     00     12:00:00     5
#> 3 17    30     00     17:30:00     6
#> 4 00    05     25     00:05:25    10

This gives us hour, minute, and second as character (chr) vectors, but we need them as numeric vectors. The conversion is made with as.numeric function.

Here the challenge now is to combine the hour and the minute into one singe time, which we would later convert to coordinate. We intentionally ignore the second (SS), since it has too negligible contribution on the plot.

Here a short algorithm is to be used:

Note here that 30 minutes is equivalent to half an hour, so 1:30:00 corresponds to 1.5 hour. We need to recall that time values range from 0 to 60, while our decimal number system gives us the suitable range 1 to 100. In our number system, reaching 100 indicates we have completed some work, while clockworks say reaching 60 completes one cycle of the task.

The hour part does not need conversion. 23 is 23 and 22 is 22.

Thus, 15 minutes on the clock says \(\frac{15}{60} = \frac14\) th or \(25\%\) work, 30 means \(\frac{30}{60} = \frac12 = 0.5\) or \(50\%\) work, and 50 means \(\frac{50}{60}\) or \(83\%\) work have been completed.

The task is further complicated due to the clock and angles rotating in opposite directions.

In trigonometry, angles start at 0° on the positive X-axis and increase counter-clockwise. But a clock starts at 12 o’clock (positive Y-axis) and moves clockwise. To reconcile this, we need a coordinate transformation.

The Complete Coordinate Conversion Algorithm

We convert HH:MM:SS to (x, y) coordinates on the unit circle as follows:

Parse time to fractional hours since midnight
- timc = hour + minute/60 (seconds are ignored as visually negligible)
- Example: 17:30 → 17.5 hours
Map fractional hours to radians (clockwise from 12 o’clock)
- The clock has 24 hours = 2π radians
- 12 AM (midnight) = 0 hours = π/2 radians (pointing up)
- 6 AM = 6 hours = 0 radians (pointing right)
- 12 PM = 12 hours = 3π/2 radians (pointing down)
- 6 PM = 18 hours = π radians (pointing left)
- Formula: time_angle = (6 - timc) * π/12 for 0 ≤ timc ≤ 6
- Formula: time_angle = (30 - timc) * π/12 for 6 < timc ≤ 24
- This piecewise formula handles the clock’s discontinuity at 6 AM/6 PM
Convert to Cartesian coordinates
- x = r * cos(time_angle)
- y = r * sin(time_angle)
- Where r = 0.95 for event points, r = 1.0 for clock skeleton
- The segment from origin (0, 0) to (x, y) forms the “clock hand”

This algorithm is implemented in conv_data(), conv_data_col(), and conv_data_len() in R/conv_data.R.

Mapping to `ggplot2` Aesthetics

Once we have (x0, y0, x1, y1) for each event (where (x0, y0) = (0, 0) and (x1, y1) is the tip of the clock hand), the chart functions map these to ggplot2 geoms:

Function	`geom_segment`	`geom_point`	Color	Size
`clock_chart()`	Fixed color	Fixed color	`Col` arg	Constant
`clock_chart_col()`	Mapped to `crit`	Mapped to `crit`	Gradient `high`/`low`	Mapped to `crit`
`clock_chart_qnt()`	Mapped to `len` (color)	Mapped to `len` (color), `Col` (size)	Gradient `high`/`low`	Mapped to `Col` or `len`
`clock_chart_qlt()`	Mapped to `crit` (factor)	Mapped to `crit` (factor)	Discrete (brewer)	Constant

The basic_clock() function (in R/basic_clock.R) builds the static clock face: - Circle via geom_path on 96 points (24 hours × 4 quarters) - Hour labels via geom_text at radius 1.1 - Hour ticks via geom_point at radius 1.0 - Quarter-hour ticks via geom_point at radius 1.0, size 0.6 - theme(aspect.ratio = 1) + blank axes for a clean clock face

Cyclic and Period Charts: Different Geometry

The cyclic charts (cyclic_chart(), day_chart(), week_chart(), year_chart()) use a fundamentally different approach: polar bar charts (coord_polar()) rather than clock hands.

cyclic_chart(): General-purpose; maps any periodic variable (hours, days, months) to angle via coord_polar(), values to radius via geom_col()
day_chart(): 24-hour rose plot; fixed hour labels (6 AM–5 AM); geom_col with gradient fill
week_chart(): 7-day rose plot; fixed day labels (Saturday–Friday); geom_col with gradient fill
year_chart(): 12-month rose plot; month.name labels; geom_col with gradient fill
plan_day()/plan_week(): Categorical planning tools; geom_col with fill = activity + geom_text for labels; uses scale_fill_brewer("Set2")

These do not use the complex-number coordinate conversion. They rely entirely on ggplot2::coord_polar() to map linear positions to angles.

Design Decisions and Rationale
